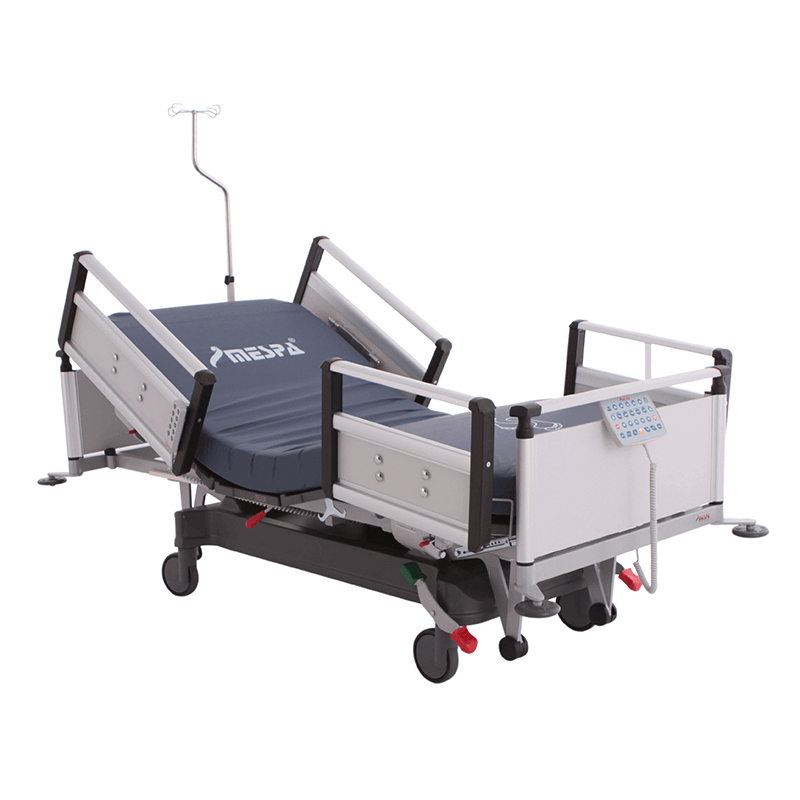

Electronic ICU and Patient Bed, 4 Motors
- 4 motors
- Electronic adjustments of backrest, footrest, height
- Trendelenburg and Reverse Trendelenburg functions

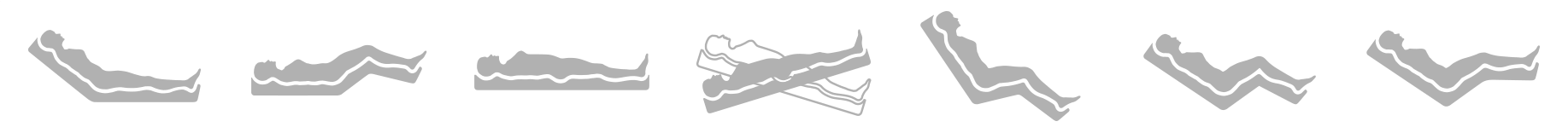

- Fowler, Vascular and Cardiac positions
- Auto-contour
- Hand control unit
- Water-proof nurse control panel at foot-end
- Single button adjustments of Trendelenburg, Cardiac, Examination, Vascular, Patient Evacuation functions
- Aluminum& HPL side rails easily cleanable, lockable and fold-away
- Aluminum & HPL detachable foot and head boards
- Auto-regression system
- Auto-CPR button
- 4 section, detachable ABS mattress platform
- ABS covered sub-frame
- Electrostatic powder coated metal frame
- Gradually adjustable footrest
- Drainage bag hooks at both sides
- Protective plastic corner bumpers
- Height adjustable stainless steel IV pole
- Central lockable castors
- IV pole sockets located at all four corners.
| Backrest Angle : 0°-70° | Footrest Angle : 0° - 42° |
| Trendelenburg Angle : 0° - 14° | Reverse Trendelenburg Angle : 0° - 14° |
| Castor Diameter : 150 mm | Safe Working Load Capacity : 250 kg |
| External Dimensions : 101 x 235 cm | Mattress Platform : 85 x 195 cm |
| Height (without mattress) : 46 - 86 cm | Power Input : max. 3,15 A 100V-240V - 50/60 Hz |
| Electrical Shock Protection : Clas I, Type B | Liquid Ingress Protection : IPx66 |
Battery Back-up
Oxygen Bottle Holder
File Holder
Lifting Pole
Monitor Tray at Foot-End
X-Ray Cassette Holder at Backrest
Linen Holder
Foam Mattress
Manual CPR at Backrest
Bed Size Extension
