• 4 motors
  • Auto-contour
  • Hand control unit
  • Auto-CPR button
  • Auto-regression system
  • Electronic adjustments of backrest, footrest, height

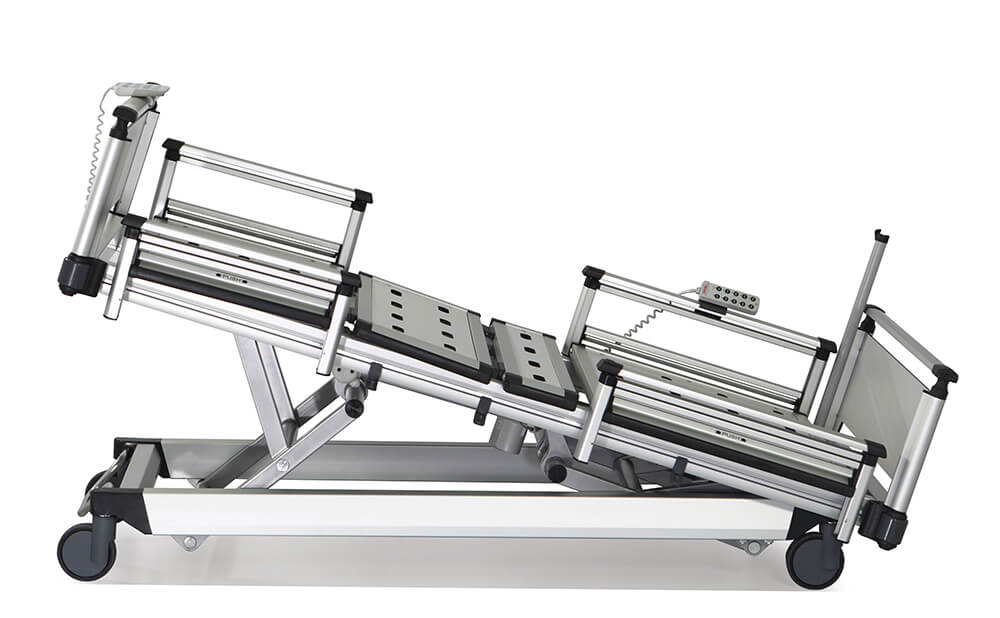

  • Trendelenburg and Reverse Trendelenburg functions
  • Fowler, Vascular and Cardiac positions
  • Waterproof Nurse control panel with backlight system
  • Single button Trendelenburg, Cardiac, Examination, Patient Evacuation positions
  • Detachable Aluminum & HPL structure head and foot boards
  • Flashlight feature integrated on nurse control panel
  • Easily cleanable, lockable and fold-down Aluminum side rails
  • 4 section, detachable easy cleanable HPL mattress platform
  • Lowering the height till 36 cm ensures safety and easy use
  • Sub frame constructed with Aluminum
  • Gradually adjustable footrest
  • Drainage bag hooks at both sides
  • IV pole sockets located at four corners
  • Height adjustable stainless steel IV pole
  • Robust scissor mechanism
  • Epoxy powder coated height & trend adjustment mechanism
  • Protective plastic corner bumpers
  • Manual CPR for backrest
  • 360° swivel central lockable castor

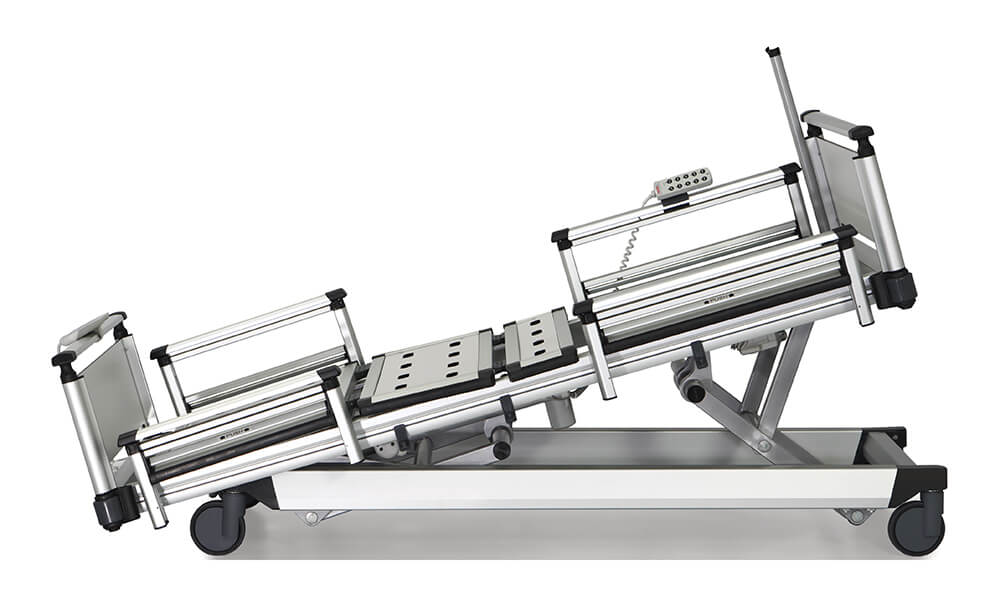

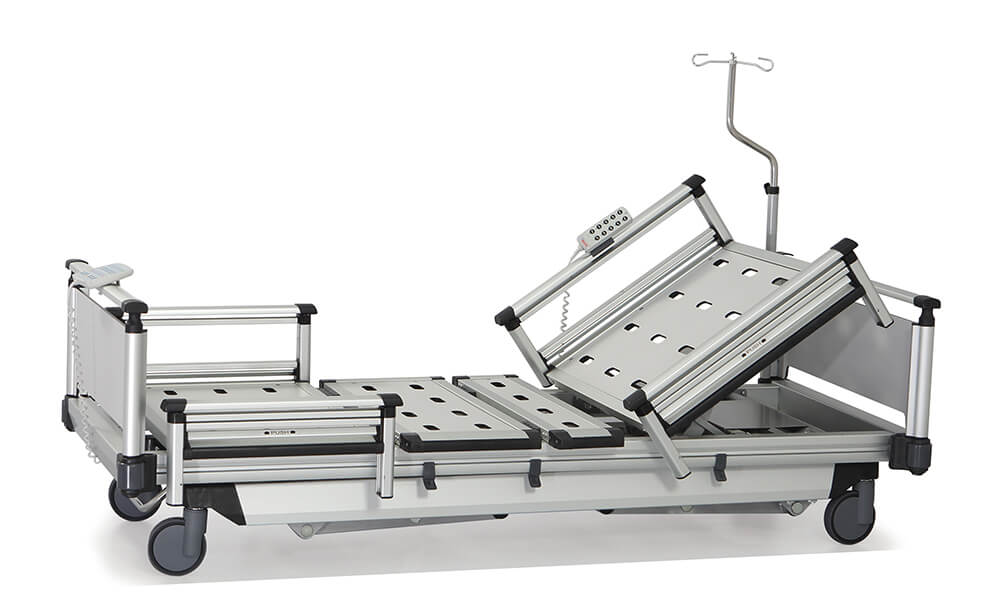

TECHNICIAL SPECIFICATIONS Electronic Intensive Care and Patient Bed, 4 Motors

Backrest Angle : 0 -70 Footrest Angle : 0 -34
Trendelenburg Angle : 0 -16 Reverse Trendelenburg Angle : 0 -16
Castor Diameter : 150 mm Safe Working Load Capacity : 300 kg
External Dimensions : 100 x 220 cm Mattress Platform : 85 x 205 cm
Height (without mattress) : 36 - 79 cm Underbed Clearance : 9 cm
Weight : 180 kg Power In : max. 3,15A 100V – 240V ~ 50/60 Hz
Electrical Shock Protection : Class I, Type B Liquid Ingress protection : IPx66

OPTIONAL ACCESSORIES

Battery Back-up
Oxygen Bottle Holder
File Holder
Lifting Pole
Monitor Tray at Foot-End
X-Ray Cassette Holder at Backrest
Linen Holder
Foam Mattress
File Bag
